Apcon Dust Extraction and Collection Systems

Apcon Range of Dust Collection System have been designed to handle various types of Dust and Volumes. These Dust Collection System are being used for both Solid and Panel Processing units. The Range of Fabric Bag Filter Dust Collection Systems include

Pulse Jet Automatic Bag Cleaning Dust Collection Systems

• • PJFF Series – used for Heavy Duty Operations with heavy dust load generation kept outdoors and consisting of Polyester Bag Filters
• • PJPL Series – used for Low to Moderate Dust Loads with Location Space Constraints and consisting of Cartridge Filters

Manual Cleaning Dust Collections

• APFT Series – used for larger dust granules and scale of economy
• APOB Series – used for larger dust granules and smaller suction requirements

Portable Dust Collectors – used for smaller machineries like Panel Saw, Edge Banders, Molders

Apcon Dust Collection System Accessories

Apcon also provides a wide range of accessories that go hand in hand with the Dust Collection Systems including

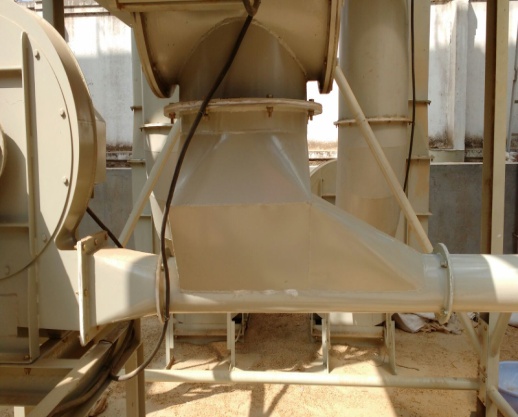

• • Rotary Air Lock Arrangement of Continuous Dust Discharge
• • Pneumatic Damper / Manual Damper arrangements for Ducting
• • Variable Frequency Drive (VFD) Controls for Improved System Efficiency and Power Saving
• • Spark Detection and Removal Systems for early detection of Sparks and their elimination
• • Pneumatic Conveying Systems for Heavy Dust Load Management

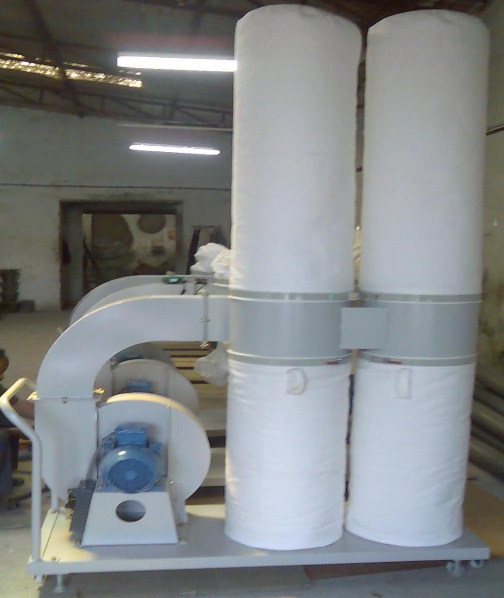

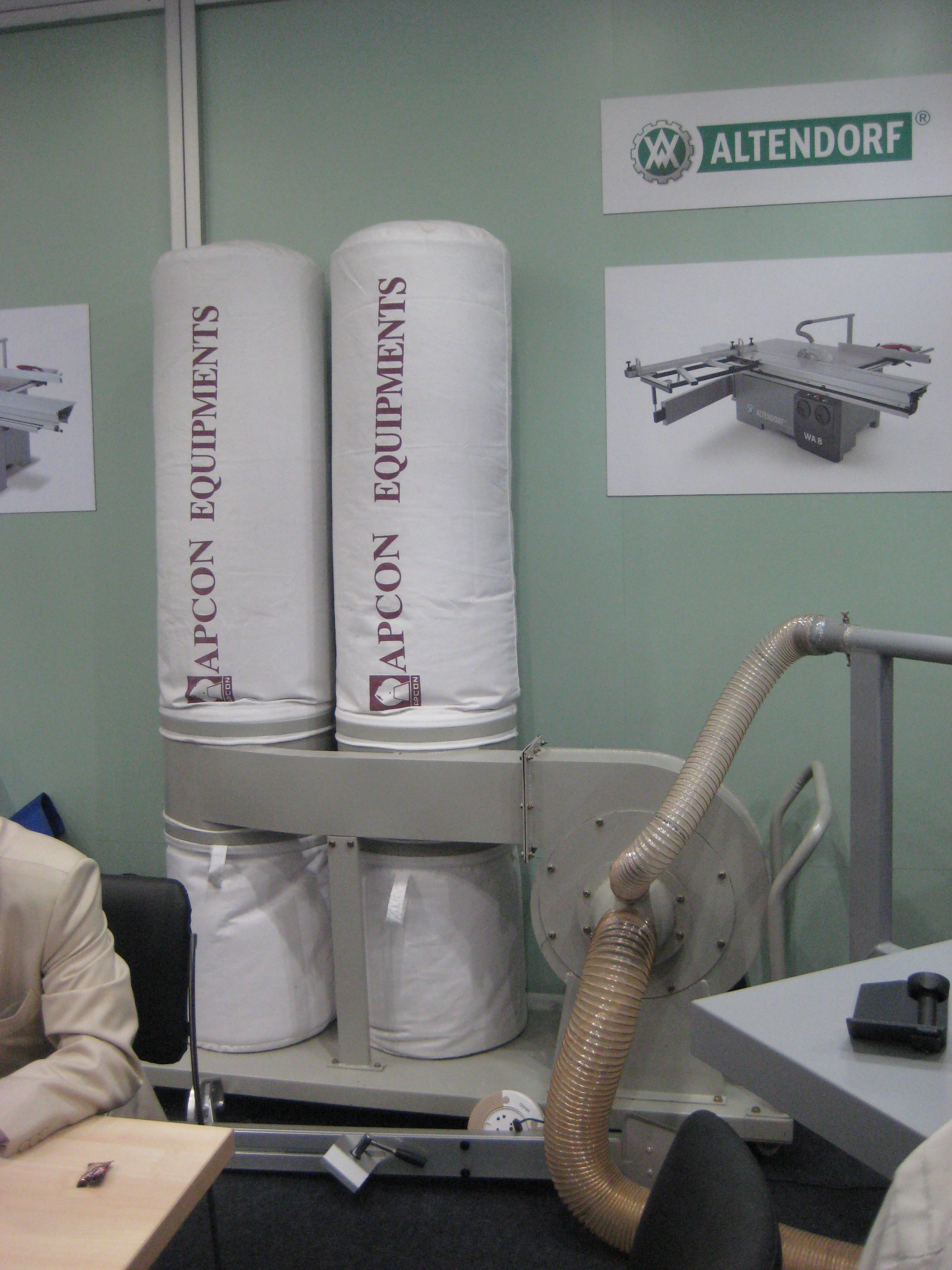

Apcon Portable Dust Collector

A Unit portable dust collector can be moved easily within the work area and its small size helps in locating it near the working machinery. Apcon Portable dust collectors are designed for continuous duty operation and have been used very heavily in the Wood working industry. A Dust collection system works by capturing woodworking dust and debris in a stream of air and transporting it through the system’s shell to a collection bag. The suction pressure and capacity ensures good suction of dust to keep the work premises clean. These dust collectors not only removes the polluted air, but it also filters the air and supplies pure recycled air back to the working area. Apcon Portable dust collectors come with a modular concept where by the machine can be assembled at site.

Apcon Portable Dust Collectors are available in two Different Capacities namely 3HP (2500 CMH) and 5HP (3500 CMH. Apcon Portable Dust Collectors are used heaving for Woodworking saws, Sanders, Jointers and Planers, Panel Saws, Molders and Edge Banders

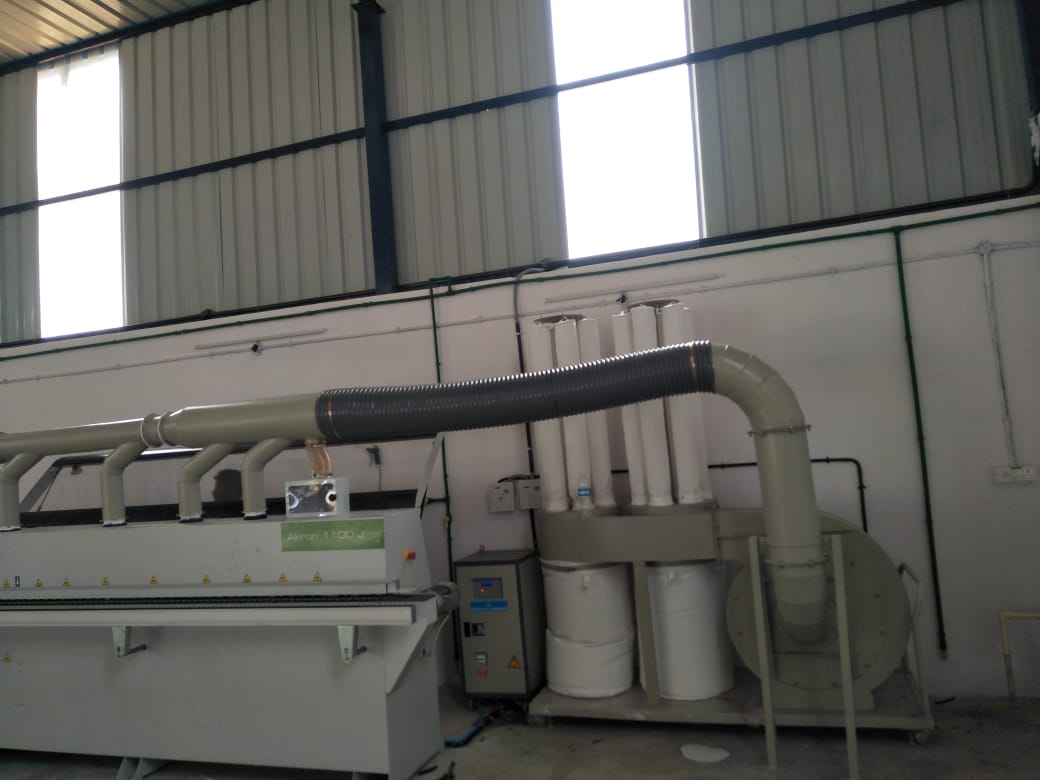

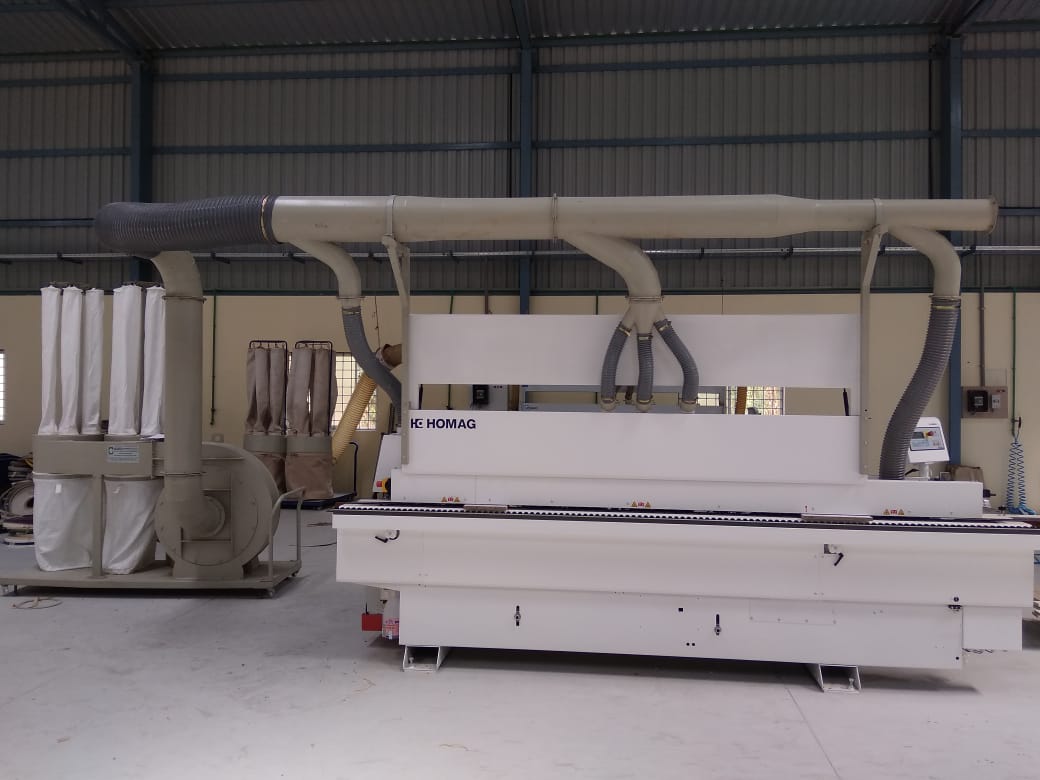

APOB Series Dust Collectors

The APOB series dust collectors are Bag Filter Type Dust Collectors with Manual Cleaning option and comes with 12/25 Filter Bags with 2/4 Collection Bag options. The Dust Collector is an enhanced version of Portable Dust Collectors and handles suction requirements of 3000 CMH to 4500 CMH. The Dust Collector is designed for continuous duty operation and has been used very heavily in Wood Working industry. The dust collector is quite efficient and simple in design and is widely used in various applications like Planing/Cutting/Edge Banding machines and are typically used indoors

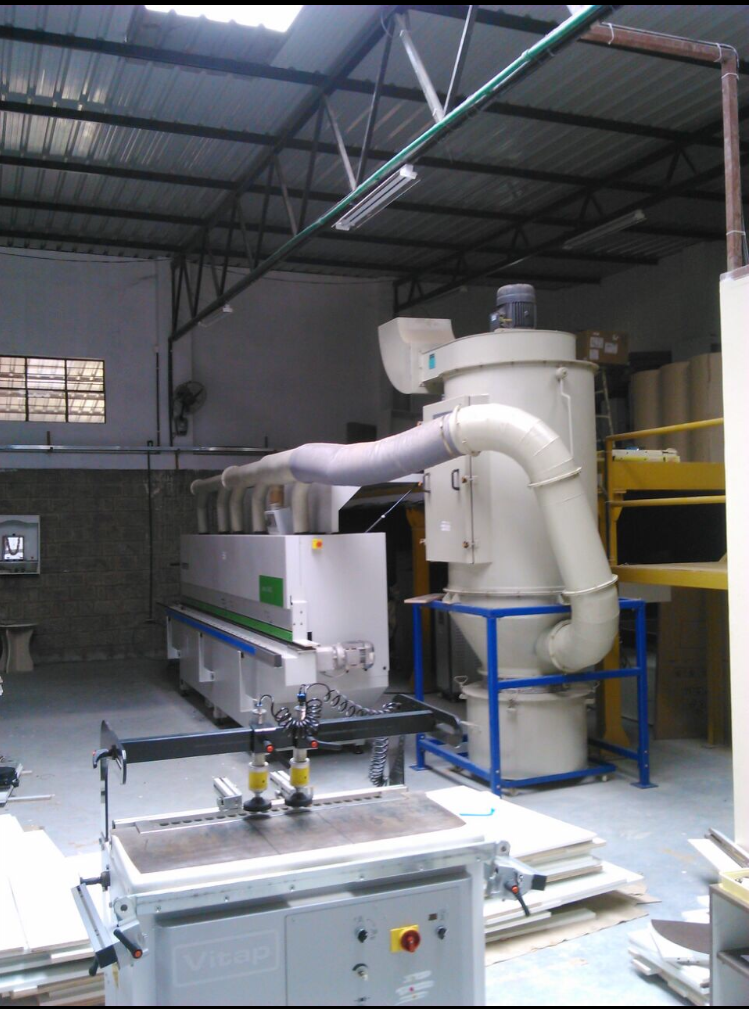

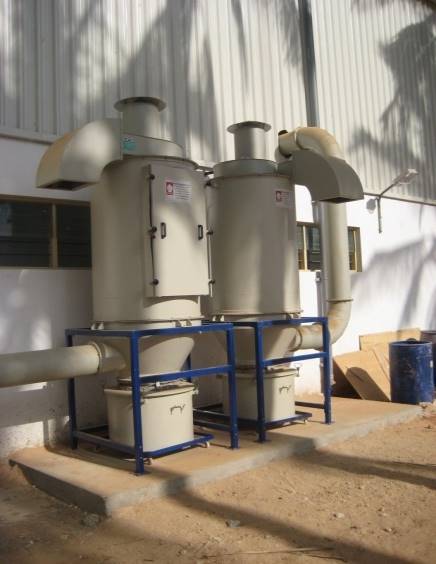

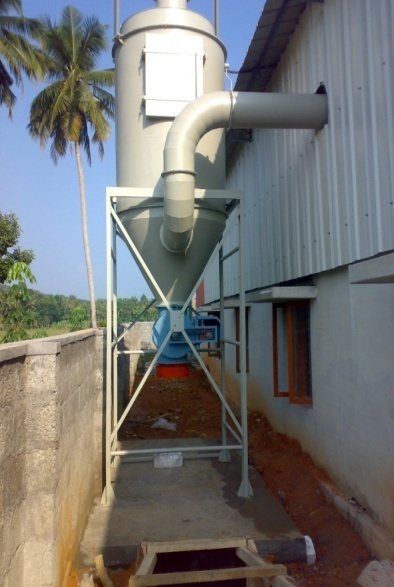

APFT Series Dust Collectors

The APFT series dust collectors are Bag Filter Type Dust Collectors with Manual Cleaning option. The Dust Collector consists of cylindrical casing with number of vertical suspended filter bags through which the dust laden air passes. The lower part of the casing forms a combined dust receptacle and a pre separator. A manual shaking device is provided to free the dust from the bags from adhering dust when the air flow is shut-off and the Dust so generated gets collected in a Dust Bin that comes with Trolley Arrangement. The dust collector is quite efficient and simple in design and is widely used for various applications.

Apcon APFT Series Dust Collectors can be used both indoors and outdoors and can be used both for both Stand Alone Connections (connected to a single Wood Working Machine) as also used as Centralized Dust Extraction and Collection System. A Silencer is provided at outlet separately when used indoors.. These Dust Collectors are used heavily in Planers, Sanding Applications, High End Edge Banding Machines and Combination Machines

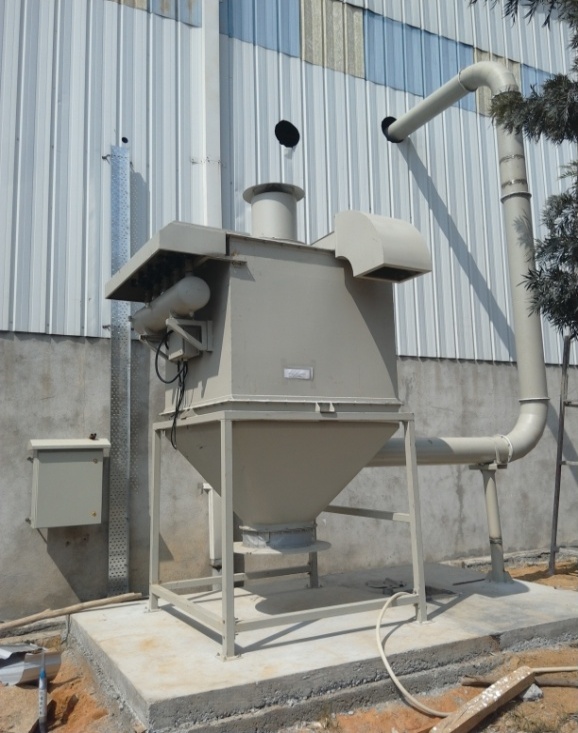

PJPL Series Dust Collectors

The PJPL Series of Dust Collectors have reverse pulse jet of compressed air Automatic bag cleaning arrangement. The Dusty Air/Gas enters the Bag Filter through a calculated and designed duct size to meet the requirement parameters of the transport system, a sudden expanse at the bag filter inlet decelerates the velocity of the air and the heavier dust particles fall into the hopper and the lighter particles are sucked to the raw gas side of the Bag Filters media. The Pleated filter sleeves collect dust on their external surfaces and periodically short blasts of compressed air are discharged downwards from the top of Pleated Bags one row at a time. The shock waves thus produced expands the Pleats away thus disturbing the dust cake formed on them. The Dust Collector is provided with a Dust Bin Arrangement or Rotary Air Lock valve with geared motor drive dust discharge. This Dust Collector can be proposed for both Indoor and Outdoor Operations.

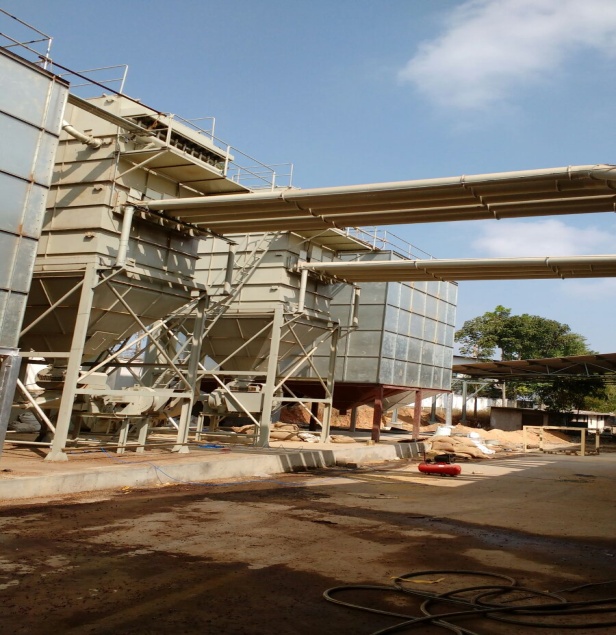

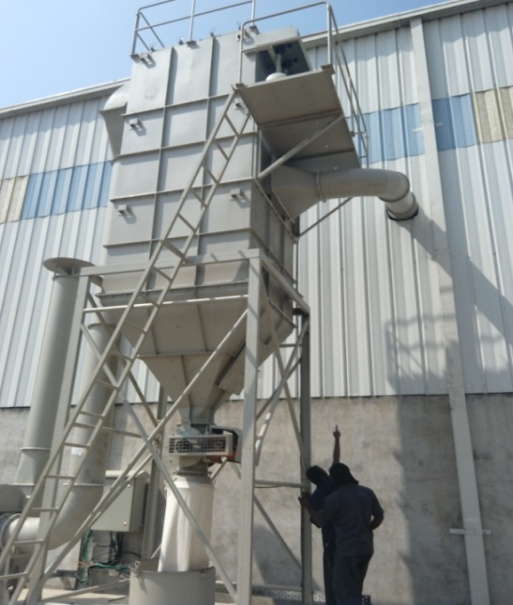

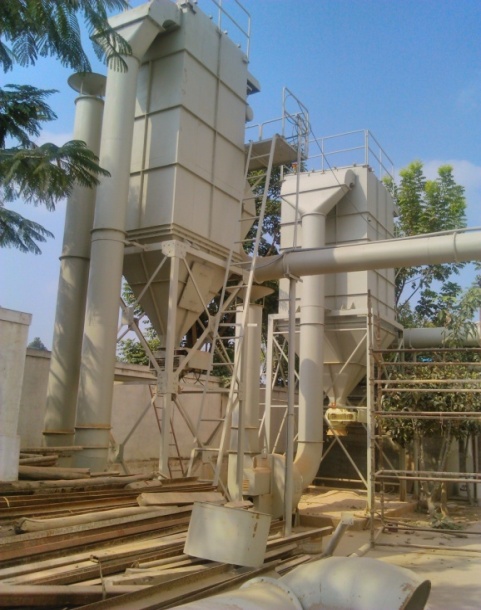

PJFF Series Dust Collectors

Apcon High Ratio Bag Filter PJFF Series have reverse pulse jet of compressed air automatic bag cleaning arrangement. It has high efficiency filter elements which are cleaned on stream by means of reverse pulse jet of compressed air. The filter sleeves collect dust on their external surfaces while suitable internal wire cages are provided to prevent them from collapsing. A Sequential Electronic timer regulates the desired bag cleaning cycle. The Dust Collector is provided with a Dust Bin Arrangement or Rotary Air Lock valve with geared motor drive dust discharge or with a Screw conveyor and Rotary Air Lock dust discharge arrangement. Such a System can also be proposed with Pneumatic Conveying Systems with Silo Arrangements for Heavy Dust Load Discharge.

Apcon Portable Dust Collectors typically come in 3 Different Ranges

DC Models	Air Quantity	Collection Bags	Adapters	Starter
2 HP Portable DC	1500CMH	1	Provided	Provided
3 HP Portable DC	2500CMH	2	Provided	Provided
5 HP Portable DC	3500CMH	2	Provided	Provided
